Three Comprehensive Environmental Test Chamber
Product characteristics
◆ Advanced air duct design, apply CFD flow field simulation technology to adjust and optimize the air flow field inside the environmental test chamber to ensure the temperature uniformity and fluctuation of the environmental test chamber, and effectively control the frosting phenomenon of the evaporator.
◆ Excellent energy-saving and consumption-reducing technology. The control system adopts PWM cold control mode for heating without refrigeration and refrigeration without heating, which can save energy by more than 40% under constant operating conditions.
◆ Diversified structural forms, three integrated products can provide three structural forms of self-lifting, scissors-fork hydraulic table and gantry (mainly for large three-integrated) according to the user's on-site conditions and the volume of the box.
Air Flow Field Diagram in the Box
Unique Air Circulation System and Software Control System
Product Characteristics
- 10-inch color capacitive touch screen for enhanced user experience and convenient operation
- Autonomous intelligent control logic system for precise temperature control with wide range capability
- SUS304 mirror stainless steel inner container with excellent corrosion resistance and easy cleaning
- Advanced energy-saving design with intelligent control system and special air circulation

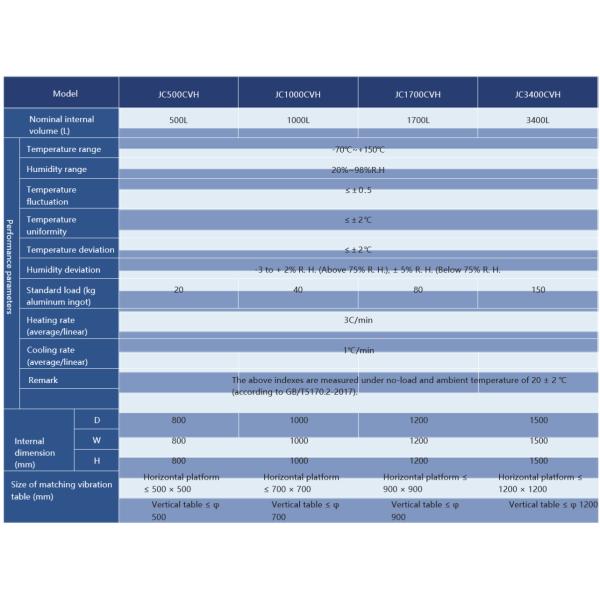

Technical SpecificationsTest Method & Compliance
All performance indexes are measured under no-load conditions at ambient temperature of 20±2℃ (according to GB/T 5170.2-2017). Temperature and humidity performance test follows standard IEC 60068 3-5, with sensor placed at the air outlet of the air handling unit.
Complies with: GB2423.1, GB2423.2, GJB150.3, GJB150.4, GB11158, GB10589
