Name: Touch Screen High And Low Temperature Test Chamber Corrosion Resistance
Brand: SPR-ing
Price: 15000 USD

Brand Name : SPR-ing

Model Number : JC330

Certification : GB2423.1、 GB2423.2、 GJB150.3、GJB150.4、GB11158、GB10589

Place of Origin : Shenzhen

MOQ : 1 piece

Price : 15000~50000 USD

Payment Terms : T/T

Supply Ability : 20/month

Delivery Time : 1~3 weeks

Packaging Details : Wooden carton

Nominal internal volume (L) : 330~2000

Temperature range : -70~220℃

Heating speed : 3~6℃/min

Cooling speed : 2~3.5℃/min

Thermal compensation capability : 1500~3000W

Cooling method : Air/water cooled (optional)

Power supply mode : AC380V±10% 50Hz 3/N/PE

Maximum power : 15.5kw

Maximum current : 30A

Contact Now

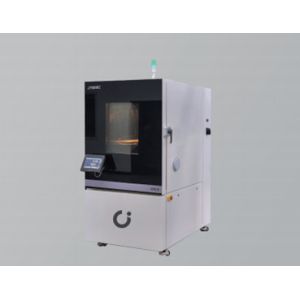

JC330 high and low temperature test chamber

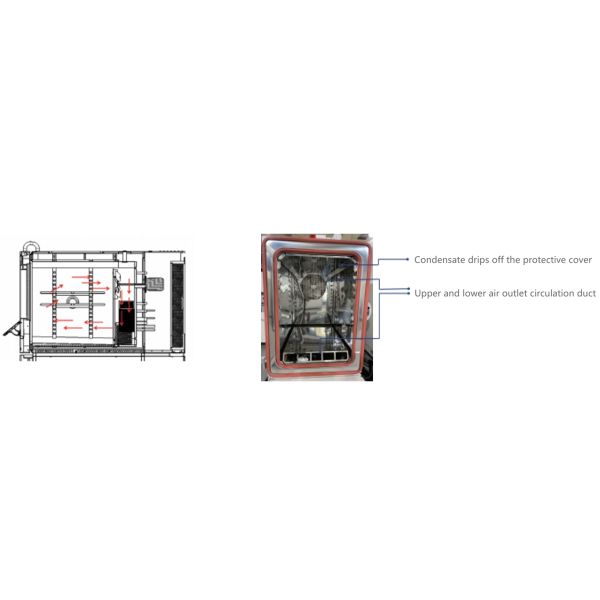

Air Flow Field Diagram in the Box Unique Air Circulation System and Software Control System

Product characteristics

The whole system is equipped with a standard 10-inch color capacitive touch screen, which provides a better user experience and improves the convenience of user touch operation.
Autonomous intelligent control logic system is adopted, which can control more accurately and has a wider temperature range to meet the diverse test needs of users.
The inner container is made of SUS304 mirror stainless steel, which has excellent corrosion resistance. The surface is easy to clean, and the later maintenance is more convenient.
Advanced energy-saving design, intelligent control system + special air circulation system can automatically adjust the operating parameters of the equipment to achieve effective use of energy.

Model			JT330(C)	JT610(C)	JT1000(C)	JT1500(C)	JT2000(C)
Nominal internal volume (L)			330L	610L	1000L	1500L	2000L
Internal dimension (mm)		D	760	795	960	1470	1670
		W	585	800	1100	1100	1100
		H	750	950	950	950	1100
External dimensions (mm)		D	1820	1850	2000	2525	2700
		W	880	1100	1450	1450	1430
		H	1950	2230	2230	2230	2400
Performance parameters	Minimum temperature	℃	Minimum temperature of tail band C -70 ℃/minimum temperature of no C -40 ℃
	Maximum temperature	℃	+ 180 ° C (the maximum temperature can be up to 220 ° C according to the actual needs of users)
	Temperature fluctuation	℃	±0.1℃~±0.5℃
	Temperature uniformity	℃	≦2℃(≤150℃)
	Temperature deviation	℃	≦±2℃
	Heating rate	℃/min	4.0	6.0	4.0	4.0	3.0
	Cooling rate	℃/min	3.5	2.6	2.8	2.5	2.0
	Test method		The above indexes are measured under no-load and ambient temperature of 20 ± 2 ℃ (according to GB/T 5170.2-2017). The temperature and humidity performance test is based on the standard IEC 60068 3-5, and the sensor is placed at the air outlet of the air handling unit.
Meet the criteria			GB2423.1, GB2423.2, GJB150.3,GJB150.4,GB11158,GB10589
Thermal compensation capability			1500~3000W
Cooling method			Air/water cooled (optional)
Power supply mode			AC380V±10% 50Hz 3/N/PE
Maximum power		KW	4.8	8.5	11.5	11.5	15.5
Maximum current		A	12.3	14.8	22	22	30
Noise level		Db(A)	65	65	68	68	70
Equipment weight		KG	480	615	870	1000	1250
